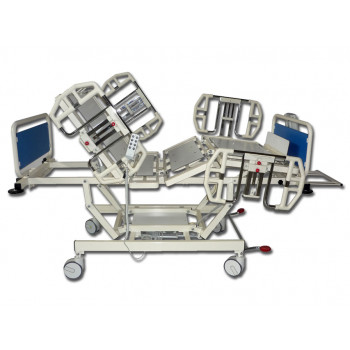

BARIATRIC ELECTRIC BED 4 extendable sections

Productbeschrijving

Four section electrically driven bed frame in durable steel construction with adjustable height and TR-RTR

• Trendelenburg 18° and Reverse Trendelenburg 18°
• Mattress platform positioning: Backrest 0°-54°, legrest 0°-24°
• Floor clearance 15 cm
• Manual handset with locking key+supervisor
• Electric CPR function
• Armchair position with excellent comfort and ergonomic siderails configuration
• Carer controlled lock out function for all controls
• Battery backup
• 4 stand twin castors Ø 125 mm (1 antistatic)
• Central braking system with a three position pedal on foot side for greater control: steering/swivelling/braking
• 4 multi-position and removable solid siderail included colour co-ordinated to bed frame
• Easily removable head & foot boards with blue HPL (light blue, yellow or green colour available on request)
• 4 corner bumpers integrated into the frame
• 2 sockets for IV pole at head side

Technical Specifications:

• Bed upper frame dimensions:

- fully retracted: 226 x 100 cm (bumpers included)
- fully extended: 242 x 128 cm (siderails included)

• Mattress platform adjustments:

- fully retracted: 200 x 90 cm
- intermediate position: 200 x 105 cm
- fully extended: 200 x 120 cm

• Foot extension: from 200 to 216 cm
• Lowest-Highest position: 41-81 cm
• Weight: 175 Kg
• Electrical shock protection: Classe 1
• Liquid ingress protection: IP 66
• Load capacity: 400 Kg
• Made in Italy
