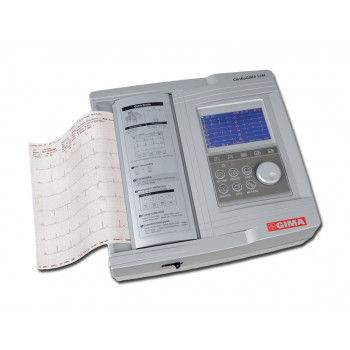

CARDIOGIMA 12M ECG 3/6/12 channels with monitor

Productbeschrijving

We propose two models of 12 channel resting ECG recorder which are the most economically priced without performance compromise, especially suitable for routine use in Private consultancies, Emergency Room or Hospitals. The simultaneous record of 12 channels has a high diagnostic value, all the 12 channels are illustrated at the same time. Their design is maximized for the user's convenience (A4 size paper, one body type).

Main Features:

- 12 leads simultaneous l0-second resting ECG
- Interpretation in only 5 seconds
- Multilanguage internal software
- Printing in (english, spanish, french, german, russian, italian, chinese and turkish)
- Wide Paper Printing (A4 size thermal paper, fax paper is OK)
- Combined output of all relevant curves, patient data, date, time and instrument settings

PC connection:
PC interface with RS 232 port Via LAN-software included. Submits already recorded ECG signal to other specialist for evaluation (only a modem is needed)

ECG filing system ?ECG Plus?:
A fully configured PC-based filing system enables to record ECG signals, display them in real time, print and record them.

Rechargeable batteries:
Available (optional) with 1 hour capacity in normal use (about 100 ECG printouts)


CHANGE OF LANGUAGE

1. Switch the unit on keeping the left-arrow button on the keyboard
2. "Language Set" will appear on the display and set language (ex. english)
3. Press button "7" on the keyboard
4. Save the new settings by pressing the key between the arrows (triangle inside circle)
