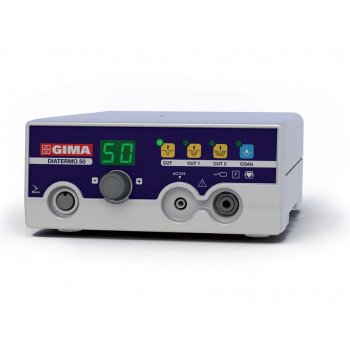

DIATERMO 50 monopolar

Productbeschrijving

DIATERMO 50 and 80 are radiofrequency electrosurgical units suitable for minor monopolar surgery. Diatermo 50 through the function selection makes pure cut, cut coagulation (CUT 1 - CUT 2) and pure coagulation possible. Diatermo 80 has a multifunction selector which makes cutting (CUT), cut coagulation (BLEND), coagulation (COAG) and microcoagulation (MICRO) possible. The one-board microcontroller and digital display guarantee high safety and reliability under any conditions. They offer outstanding professional surgical results due to their ergonomic and superior safety features.

Technical Specifications:

• Max output power CUT: 50 W-400 O
• Max output power CUT/COAG1: 45 W-400 O
• Max output power CUT/COAG2: 40 W-400 O
• Max output power COAG: 40 W-400 O
• Working frequency: 600 KHz
• Patient circuit: F
• Selectable input voltage: 115 - 230 Vac
• Mains frequency: 50 - 60 Hz
• Electrical input power: 200 VA
• Size WxHxD: 190 x 85 x 239 mm
• Weight: 2.5 kg
• Controls: Patient/Plate circuit monitoring, Output power monitoring, Self check control
• Safety: EN60601-1, EN60601-1-2, EN60601-2-2,
• Electrical Class: I CF, MDD 93/42/EC Class: II b

Standard accessories:

• Single use handle
• Waterproof foot-switch (30577)
• Metal plate (30566) + cable (30559)
• Kit of 6 short autoclavable electrodes, Ø 2.4 mm, length 5 cm (30501/2/4/7/9/10)
• Power cable 2 m - Shuko plug
• User manual: English, Italian, available on request French, Spanish
