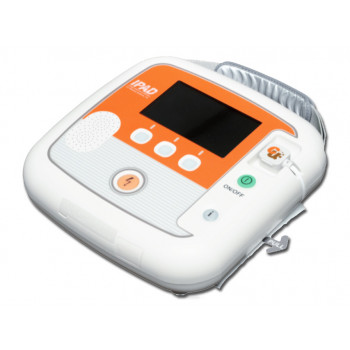

IPAD CU - SP2 DEFIBRILLATOR

€ 3.100,00Excl. BTW

Productbeschrijving

- 16 languages selectable as iPAD CU-SP1
- Graphic LCD
- Soft keys
- Shock button
- Defibrillator Pads connector
- IrDA port and SD card port
- Power button
- i-Button

Supplied with adult PADS, rechargeable battery, battery charger and manual (as CU-SP1)
Technical Specifications
Defibrillator
• Operating mode: Semi-automatic
• Waveform: e-cube biphasic (Truncated exponential type)
• Energy: 150J fixed
- Adult: nominal 150J at 50 ohm load
- Infant/child: nominal 50 joules at 50 ohm
• Charge control: controlled by automated patient analysis system
• Charging time: within 10 seconds since voice instruction "an electric shock is needed"
• Sealing:
- waterjet proof IPX5 per IEC60529 (IP55)
- dust protected IP5X per IEC60529

User interface
• User support: detailed voice prompts and flashing indicators
• CPR guidance: voice prompts for how to perform CPR for adult and child
• Controls: on/off button, ”i“ button, shock button
• Indicator: LCD display (Device status, Battery status, Pads status)
• Sensing: pads expiry date, Pads connection status

CPR Monitoring
• Automatic Volume adjustment

Data recording and transmission
• IrDA port: wireless transmission of event data to PC, SD Card
• Internal Memory (Nand-flash): ECG, Event
• Storage capacity: multi recording 5 events / Max 3 hours
• Data review PC Programme: CU-EX1

Patient analysis system
• Patient Analysis: Shockable Rhythms - Ventricular Fibrillation, Tachycardia
• Sensitivity/Specificity Meets AAMI DF80 Guideline

Disposable high capacity battery
• Standard Type: DC 12 Volt 4.2 Ah, Lithium manganese dioxide
• Capacity: Minimum 200 shocks (150J)

Extra informatie

Artikelnummer: 04141535341001
