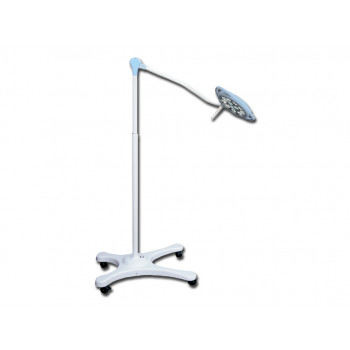

PENTALED 12 LED LIGHT - mobile stand

Productbeschrijving

Pentaled 12 is a perfect combination of technological developments, innovative, ergonomic and compact design, ultra-light and handy structure. Five versions available (trolley, ceiling, ceiling double, trolley with battery group and wall) and technical performances make Pentaled 12 suitable in any situation for precision operations, diagnostic use, preoperating theatres and test laboratories. Battery groupavailable on request also for wall and ceiling group.

LED LlGHT
5000 K bright and cold light reproduces colours faithfully, assuring excellent definition of details.

INDIRECT LlGHT
The physical principle of reflection is applied through a system of ellipses. They reflect the light rays emitted by the LED on the lighting surface, obtaining a high light intensity with a reduced number of LED: over 50,000 lux at a distance of 1 metre with just 12 LED.
The indirect light does not dazzle and does not strain the eyes and favours concentration.

ERGONOMIC
The ultra-flat lighting body is equipped with ultra-resistant polycarbonate screen which guarantees protection against accidental collisions.

PENTALED12 can be easily positioned by rotation on 4 axes:

• The structure has a side full-circle handling without any stops
• The arm moves vertically thanks to a spring-compensated balancing system
• The reflector can be rotated on the vertical and horizontal axis.

Movements are possible through the sterilizable handle. The lower part of the reflector incorporates the switch and a digitai control to adjust the light with visual signal of the intensity set.

Technical Specifications:

• Light intensity at 1 m distance Lux 50.000
• Colour temperature of radiated energy K° 5000
• LED No. 12
• Average LED life hours 50.000
• CRI (Colour rendering Index) Ra 90
• Light field where the illumination reaches 50% of Ec (d50) Ø mm 85
• Light field where the illumination reaches 10% of Ec (d10) Ø mm 140
• Depth of illumination (L1+L2) at 20% mm 150
• Total radiated energy Ec W/m2 119
• Weight (ceiling, mobile, wall, double) kg 18-13-12-20
• Power supply V/Hz 100-230 V, 50-60 Hz
• Minimum height of the room (ceiling version) mm 2.200
• Standards: IEC 60601-2-41, MDD 93/42 CEE, medical device of Class I.
