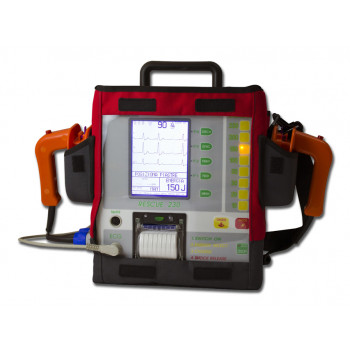

Productbeschrijving
- BTE (biphasic truncated exponential) discharge type
- Impedance compensated energy delivery
- Energy selection from 10 to 230 Joule directly from the front panel.
- Charge time 5 sec for 230 Joule with fully charged battery
- 100 shocks of 230 J with fully charged batteries
- Charge/discharge control from the paddles
- Ecg 'R' wave synchro mode or async mode
- Can be used with disposable paddles
- Large (5.7") high resolution backlite LCD display (320x240 dots)
- ECG through the paddles or through patient cable
Technical Specifications:
- Display:
- Large (5.7"") high resolution backlit LCD display (320x240 dots)
- ECG through the discharge paddles (1 trace) or through 4 leads patient cable (6 traces): I, II, III, aVR, aVL, aVF.
- Automatic change over when plugging the patient cable
- Filters: 50 Hz/60 Hz, base line, low pass
- Heart rate indicator
- Printer:
- Integrated thermal printer for ECG traces and events documentation hardcopy
- Paper speed 5, 10, 25 and 50 mm/sec. (paper width 58 mm)
- Safety:
- Two hand safety shock release
- Ecg input isulation CF class
- Internal discharge after 30 sec. of standby after charge
- Power supply:
- internal Ni-Cd high capacity batteries (charging time 95%: 2 hours)
- universal mains adaptor charger 110/220 VAC, 50/60 Hz
- Dimensions: 34 x 26 x 13 cm
- Weight: 5.5 kg
- Made in Italy
Standard accessories:
- Internal Ni-Cd high capacity battery
- Carrying case
- Patient cable 4 leads
- Disposable paddle + cable
- Printer
- 1 paper roll
- 2 reusable paddles
- Mains adaptor charger
- User manual (english, italian) spanish and turkish on request
Extra informatie
| Artikelnummer: | 04141533447001 |
|---|
