SOLARIS OPERATING TABLE mechanical

Productbeschrijving

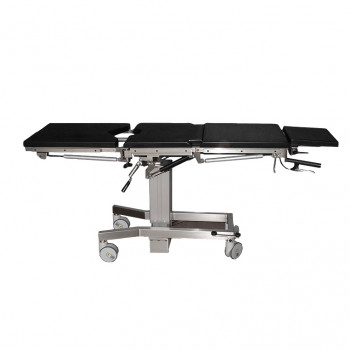

Solaris operating table - mechanical

Designed to satisfy surgical functionality, practicality, quickness and easy maintenance. they allow, with proper accessories, to satisfy every basic surgical activity

Table top
Divided in 5 sections (head, back, pelvis, 2 indipendent leg sections) with stainless steel structure and plexiglass to allow x-ray permeability and easy cleaning. Table top is pre-arranged for the insertion of x-rays holders all over its length. Accessories holder (25x10 mm) in stainless steel, covers table top length on both sides.

Telescopic column
Square and of limited size, covered by anodized aluminium (27560) or stainless steel (27562/4/5/6)), it allows up and down movement (approx. 70-100 cm) by a foot pedal placed at the base through a closed oleodynamic circuit with oil-tight pump avoiding any oil leakage (27560/2/4) or by remote control (27565/6).

Mattresses
They cover all the table top lenght. Made in a long lasting material, sterilizable in autoclave, x-ray translucent and elastics. They are independently removable.

Base
For solaris, it is moveable by four large antistatic castors, 2 directional and 2 pivoting with brake. For Gima and Gima tr (mechanical and semi-automatic) base is completely made of stainless steel to ensure perfect stability. It is provided with a locking system to the floor through a foot bar. Transport is allowed by 3 antistatic wheels, one pivoting and 2 directional.

Movements
For solaris: Trendelenburg and Reverse/Trendelenburg with a “quick hydraulic action” and lateral tilt right-left 20° by crank. For Gima and Gima TR same table movements as above, work through a mechanical system moved by two cranks, positioned at the side, easily retractable, for semiautomatic by remote control.

Longitudinal translation
Both Gima TR models offer manual longitudinal translation of table top of about 300 mm to allow total elimination of column encumbrance for 100% transparency of top.

Full range of accessories
All tables come with mattress included, semiautomatic also includes control (with 1 m cable) batteries and crank for emergency of engine.


Technical Specifications

• Table top size: 200 x 48 cm
• Height: 70-100 cm
• Lifting stystem: mechanical
• Trendelenburg: 30°
• Reverse Trendelenburg: 30°
• Lateral tilt right-left: 20°
• Table top composition
• Head section: extractable and inclinable (+25° -90°)
• Back section: inclination (-40° +80°) by gas spring, size: 48 x 51 cm
• Pelvis section size: 48 x 49 cm
• Leg section divided in two independent sections with following manual movements:
• opening right/left of 0°/90°
• inclination +30° -90°
• Both parts are easily independently extractable
• Weight: 90 Kg
• Operating table capacity: 200 kg
• Made in Italy
