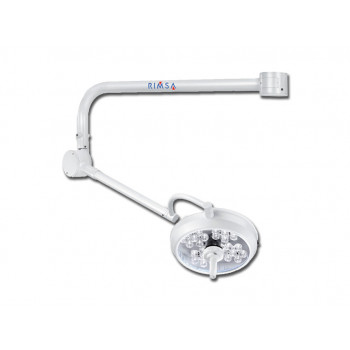

TRIS SCIALYTIC LED LIGHT - ceiling

Productbeschrijving

Shadowless lamp with exceptional technical performance and flexibility of use. Suggested for small surgery, gynaecological and first aid surgeries. Cupola with four inner modules, each with 7 LEDs (total of 28 LEDs) displayed in a radial layout with lenses allowing shadowless and deep light. LEDs modules guarantee continuous light, even in the unlikely event that a LED should fail. Extremely easy to handle and stable in position. Focusing and adjusting the diameter of the illuminated area takes place by rotating the sterilizable handle at the centre of the reflector.

Battery group with charger (not included) available on request during the order: 3 hours autonomy, 6 hours recharging.

Technical Specifications:

• Light intensity: 100,000 lux at 1 m distance
• Diameter of the reflector: 40 cm
• Adjustable diameter of illuminated field: 26-38 cm
• Light field where illumination reaches 10% of Ec (d10): 24 cm
• Light field where illumination reaches 50% of Ec (d50): 12 cm
• Depth of illumination IEC 60601-2-41 (L1+L2) at 20%: 148 cm
• Depth of illumination IEC 60601-2-41 (L1+L2) at 60%: 82 cm
• 28 LEDs 1 W each - life 50,000 hours
• Colour temperature: 4500° K ± 5%
• CRI 96 (Chromatic Rendering Index)
• Power supply: 100-240V - 50/60 Hz
• Total radiated energy Ec 280 W/m2
• Weight (ceiling, mobile, wall) kg: 35 - 32 - 27
• Minimum height of the room (ceiling version): 250 cm
• Norms: IEC 60601-1, IEC 60601-2-41 - MDD 93/42/EEC
• Made in Italy Warranty: 12 months - mechanical components warranty: 10 years
